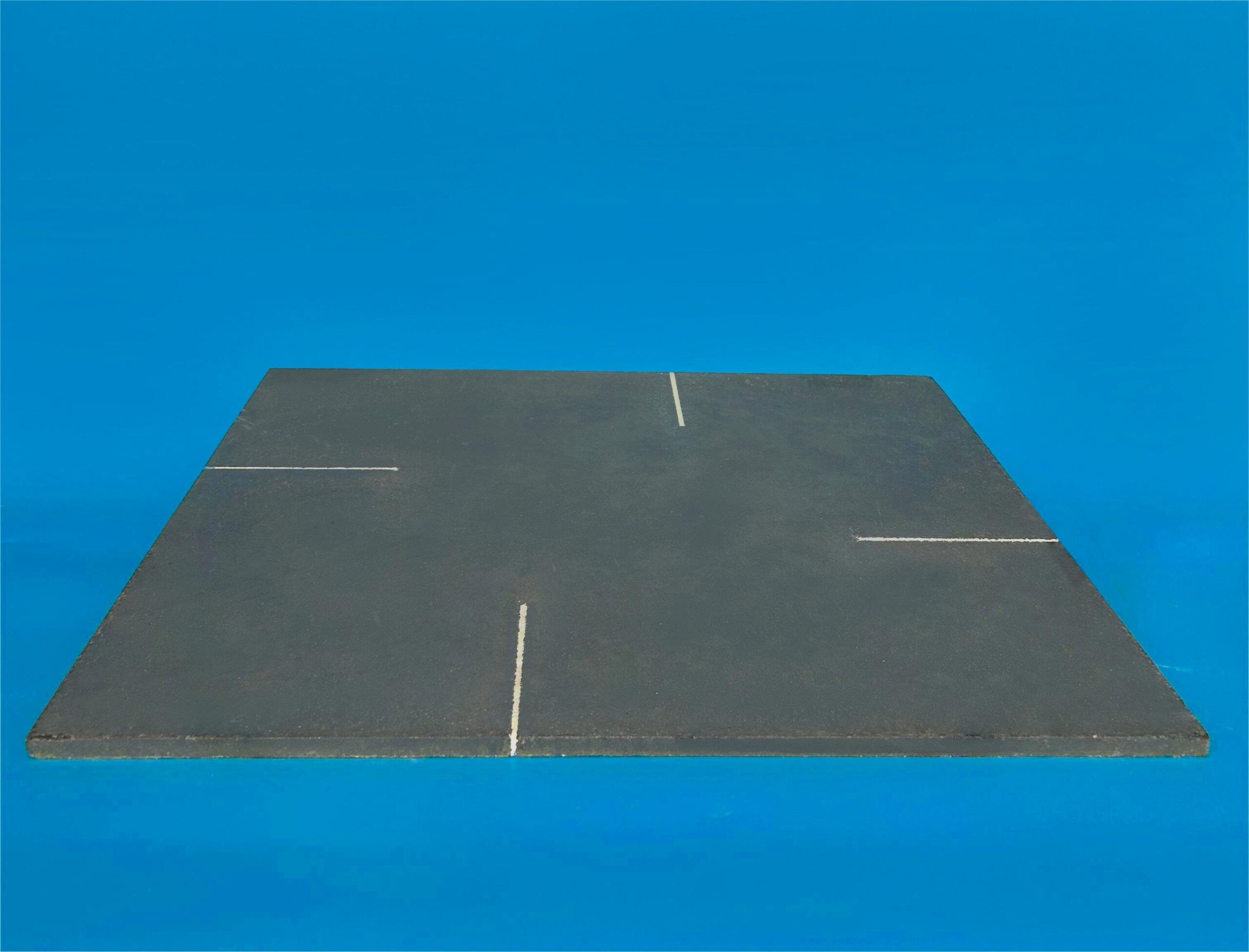

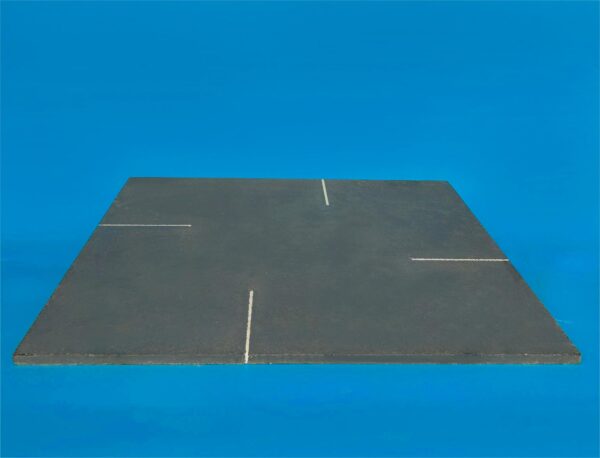

SiC Setter Plate/ Kiln Shelf/ Batt/ Slab

Silicon carbide is an excellent ceramic material with high-strength properties.

With the features of excellent thermal shock stability, high mechanical strength, and distortion resistance at high temperatures.

It is mainly used for loading bearing items in the temperature range from 1300℃ to 1350℃.

1. Excellent thermal stability and distortion at high temperature

2. High bending strength and higher load capacity

3. Good thermal conductivity

4. Excellent thermal shock resistance

5. Excellent corrosion and abrasive resistance

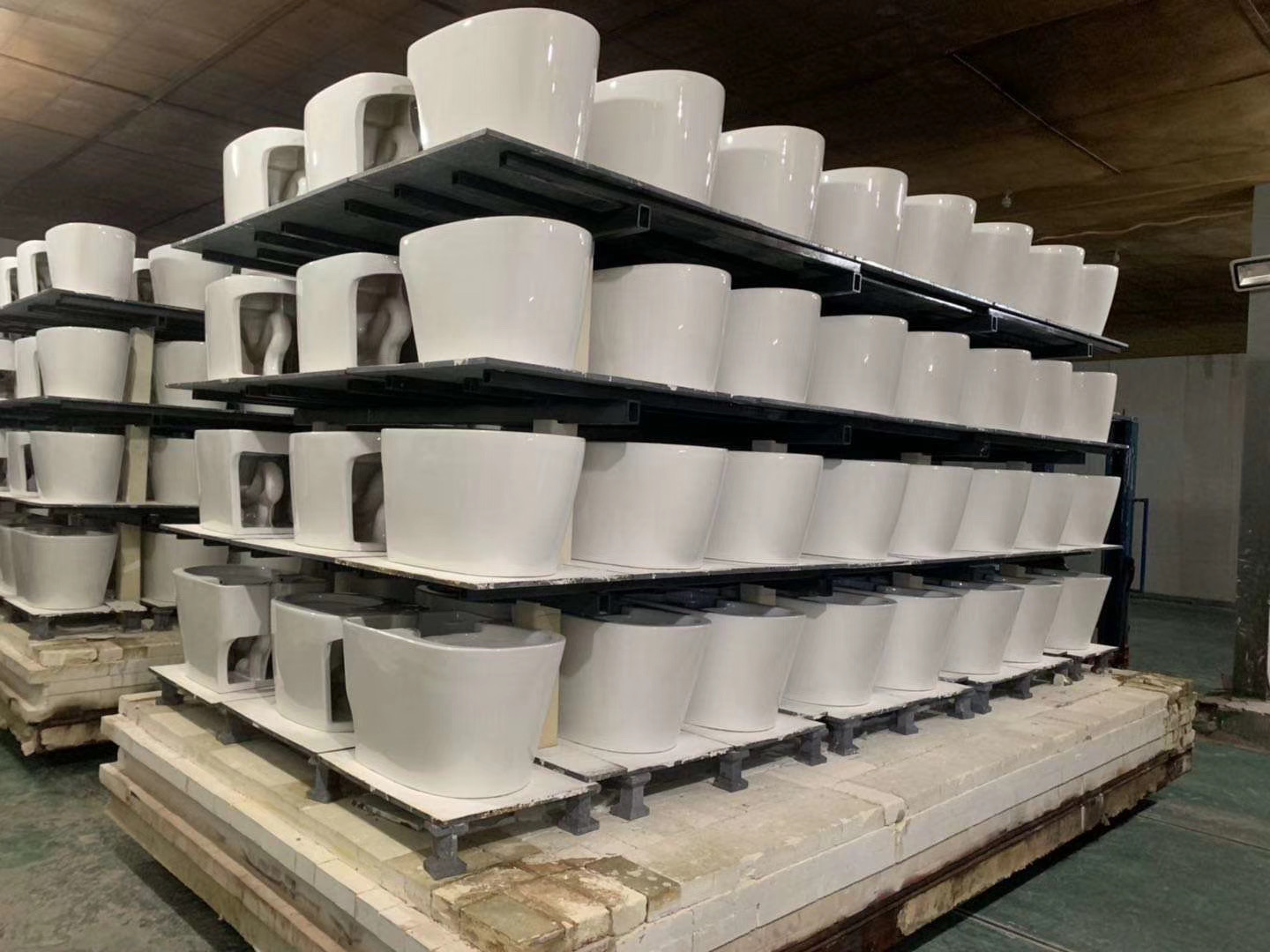

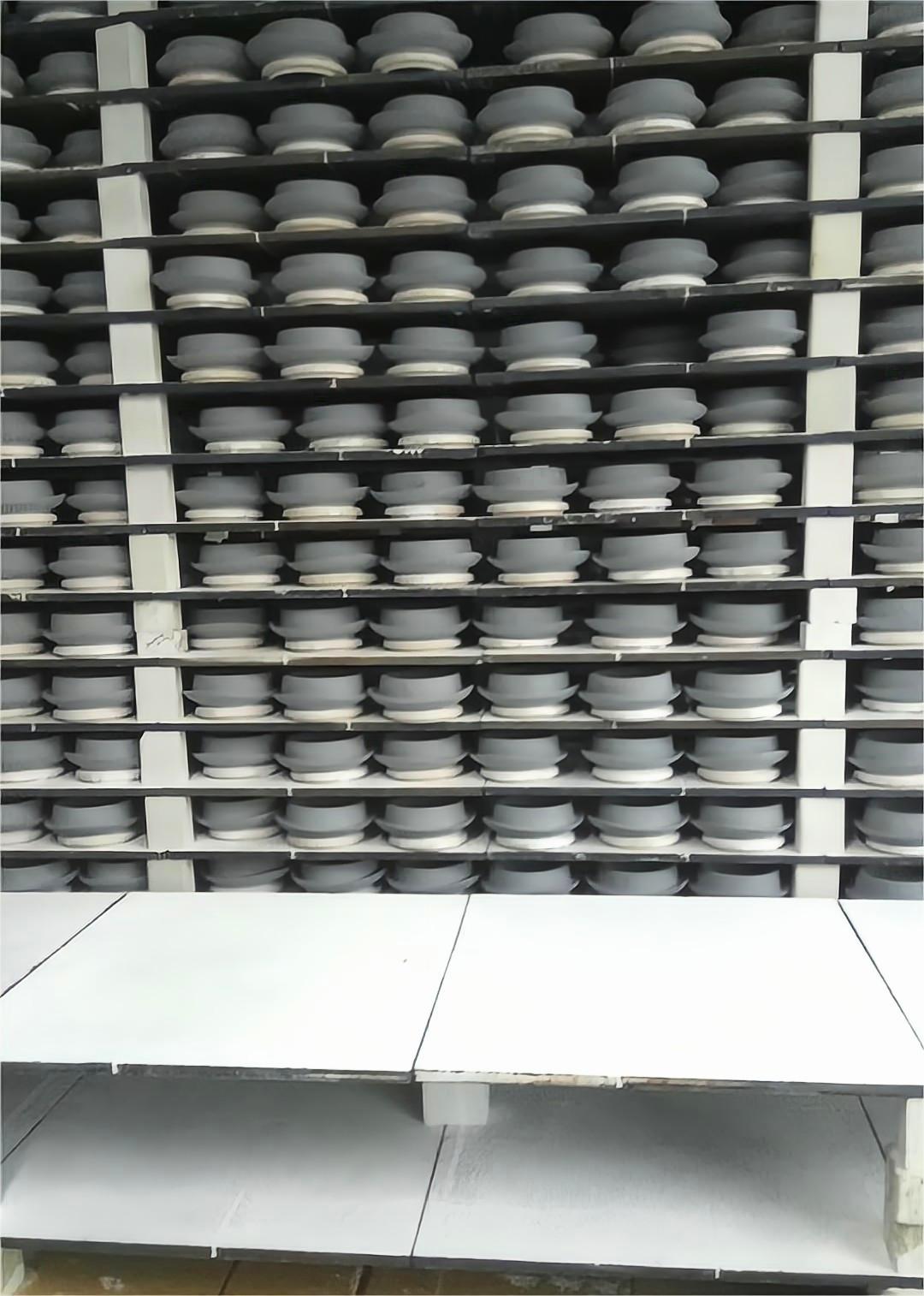

Tableware Ceramics, Sanitary ware Ceramics, Art Ceramics, Electric Ceramics, High-voltage ceramics, etc.

其他信息

Material

Silicon carbide

Application

Refractory

Thickness

8-25mm

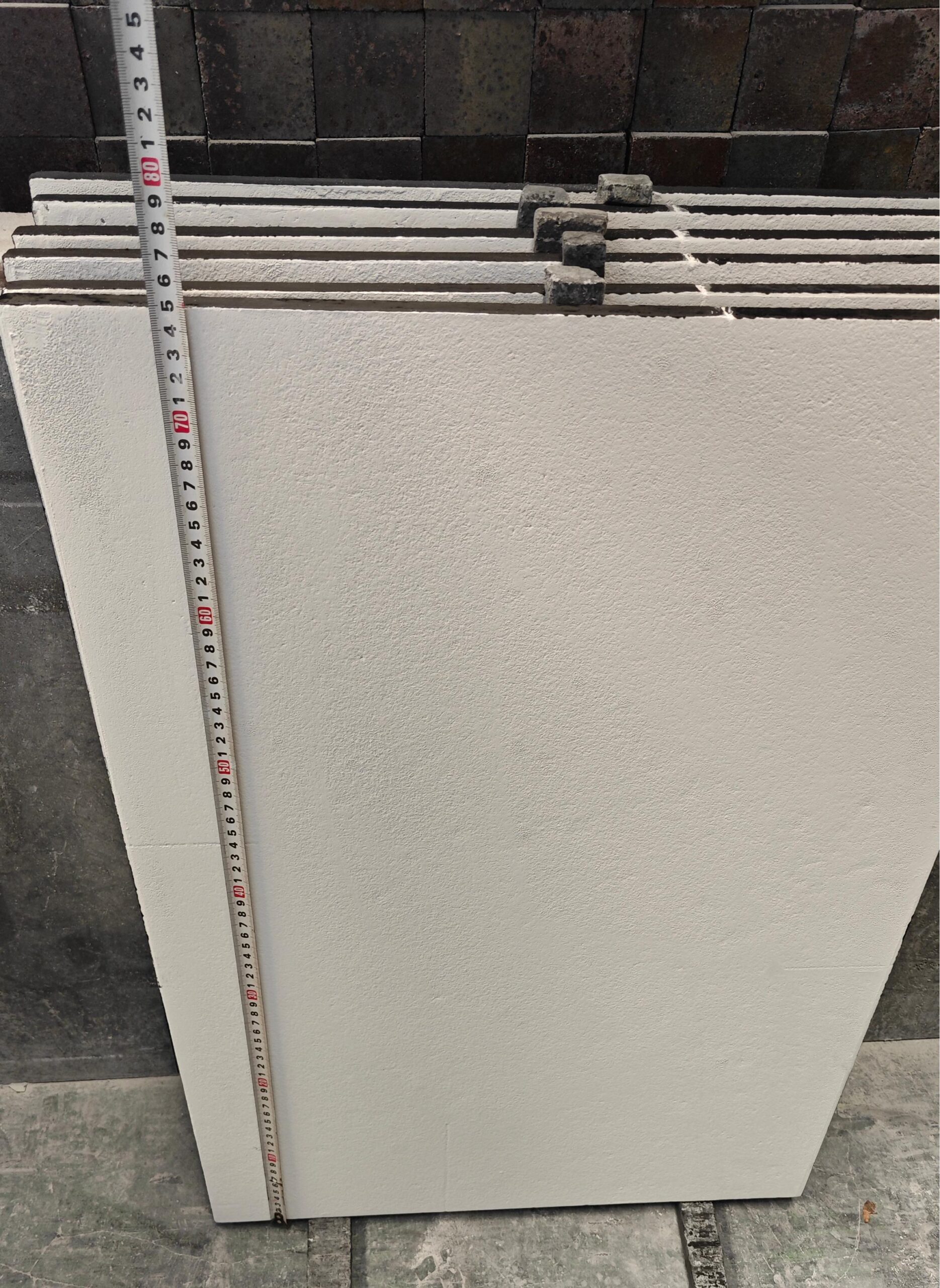

Size

From 320x320mm to 800x1000mm

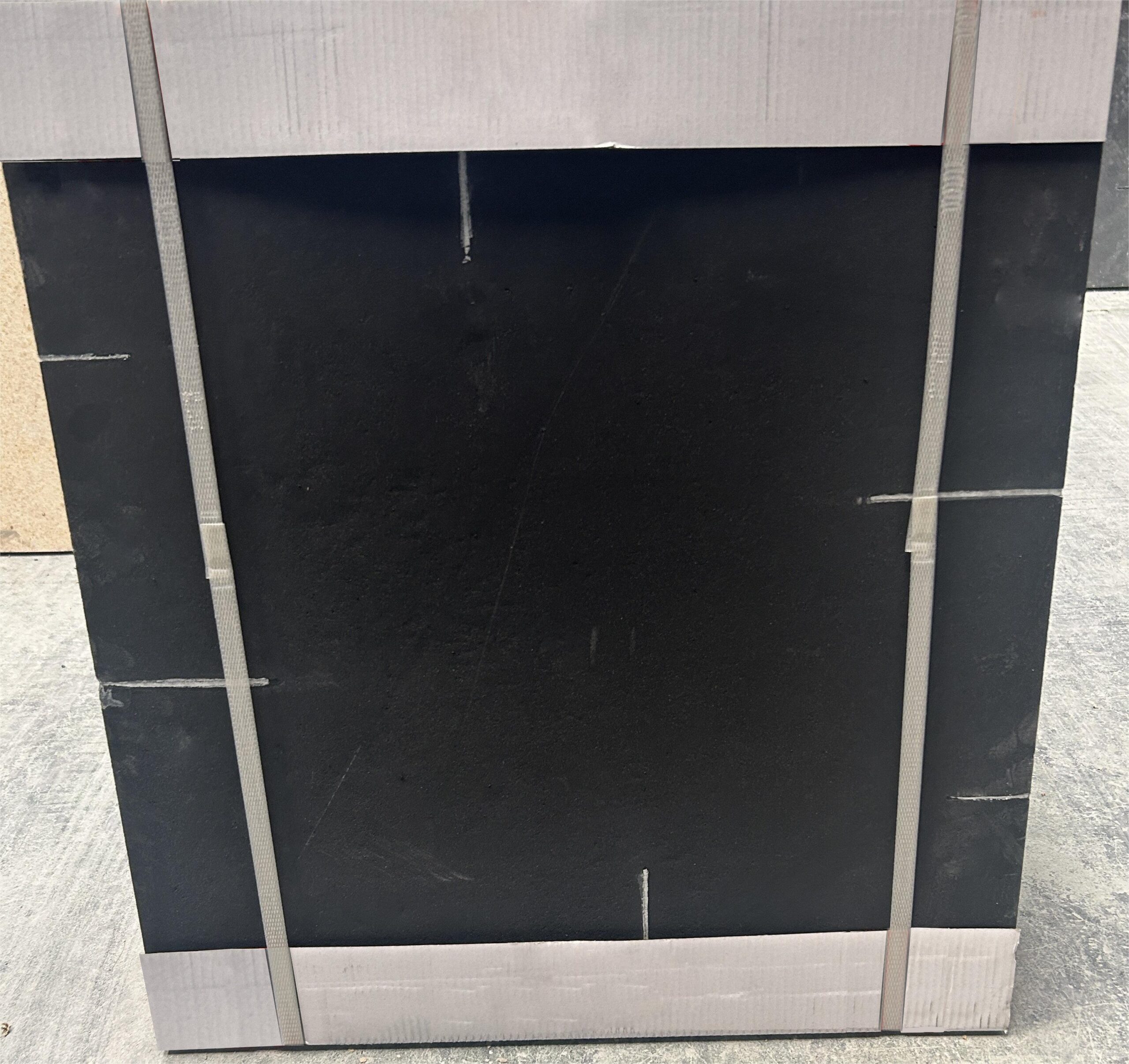

Packing

Wooden case with foam

Item

Data

Chemical Composition

SiC ≥90%

Apprarent Porosity

7-8%

Bulk Density

2.7-2.75 g/cm3

Compressive Strength

≥90

Modulus of Rupturt at 20℃

≥50 MPa

Modulus of Rupturt at 1400℃

≥55 MPa

Thermal Expansion at 1000℃

0.42-0.48%

Thermal Conductivity at 1000℃

14.0 w/m.k

Max. Working Temperature

1450℃
